| Model | TC-1X-8-4 | TC-6.5X-40-18 |
| FOV（mm） | F4 | F2.8 |
| Magnification | 1X | 6.5X |
| Object Working Distance（mm） | 8 | 40 |
| Support CCD Size（mm） | F4 | F18 |
| Image F/# | >1.9 | >12.5 |
| Telecentricity | <0.01 | <0.01 |
| Image Distortion | <0.01% | <0.01% |
| Object Numerical Aperture | 0.25 | 0.25 |
| Depth of Field（um） | [email protected] | [email protected] |
| Band（nm） | visible light | visible light |
| Object Resolution（um） | 3.45um@Pixel size 3.45um | 1.35um |
| Total Lens Length（mm） | 200 | 240 |
| Camera Interface | C | C |
| Variable Aperture | Support | Support |
| Coaxial Light | Customizable | Customizable |

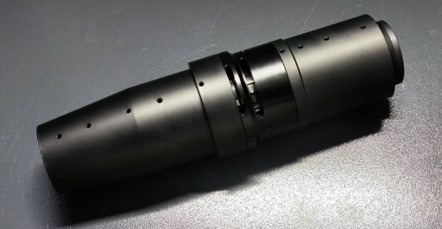

High-magnification bi-telecentric lens is a high-performance optical element commonly used in the fields of industrial photography, machine vision and measurement.
It is designed to provide ultra-low distortion, high-resolution images and maintain consistent and accurate object size measurements over a wide field of view.
It can achieve twice the magnification effect, and also has certain telecentric properties, which can make the edges of objects clearer. This lens is commonly used in medical imaging, microscopy and other fields.
Product introduction
Telecentric optical path design, ultra-low distortion, high telecentricity, high depth of field, suitable for defect identification, automatic inspection of assembly lines and other industries.
This high-resolution telecentric lens 0.3X supports maximum sensor size 2/3″, WD 110mm, C-mount.
Product advantages
- All adopt telecentric design, featuring high depth of field, high resolution and low distortion.
- Supports 1/2”, 1/1.8”, 2/3” target size cameras.
- Coaxial light illumination is optional and the illumination is uniform.
- Standard C interface.
- Can be used with steering prism.
BOTE provides a variety of telecentric lenses for you to choose from, which can also be customized.
Please feel free to let us know if you need more details.
