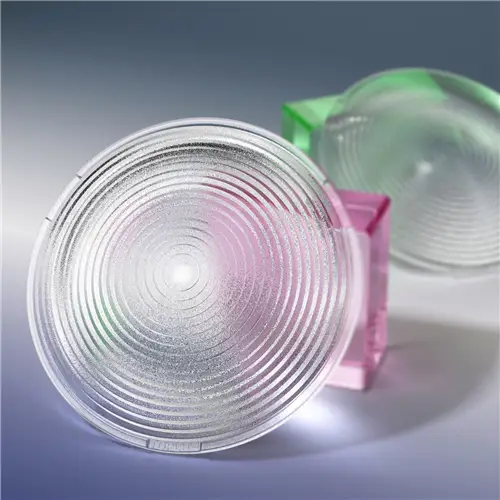

Description of the Components A Fresnel lens is a type of composite compact lens originally designed by the French physicist Augustin-Jean Fresnel for lighthouses. It reduces the amount of material required compared to a conventional lens by dividing the lens into a set of concentric annular sections known as “Fresnel zones.” Each zone is a section of a simple lens, which is then tilted to fit into a flat or curved surface, greatly reducing the thickness and weight of the lens. Despite its segmented design, a Fresnel lens can effectively focus light similar to a conventional lens, making it ideal for various optical applications where size and weight are critical factors.
The Fresnel lens operates by capturing and redirecting light through its thin, flat surface, allowing for significant reductions in the lens’s overall thickness. This makes it particularly useful in applications such as overhead projectors, lighthouse beacons, and automotive headlights, where minimizing the lens’s bulk without compromising optical performance is essential. The lens’s unique design also enables it to achieve a large aperture and short focal length, which are advantageous in applications requiring strong focusing power and high optical efficiency.
General Fabrication Specification
Fresnel lenses are manufactured with precision to meet specific optical requirements. Below is a table outlining the typical specifications for Fresnel lenses:
| Specification | Detail |
|---|---|
| Material | Optical-grade plastic (PMMA, PC), Glass |
| Focal Length | 10 mm to 1000 mm |
| Diameter Range | 10 mm to 500 mm |
| Groove Density | 10 to 200 grooves per inch |
| Groove Depth | 0.1 mm to 1 mm |
| Surface Quality | 40/20 S&D or better |
| Aperture Efficiency | >85% |
| Transmission Range | UV, Visible, NIR |
| Coating Options | Anti-reflective, UV coating |
Fabrication Process and Quality Control
The fabrication process of a Fresnel lens begins with the selection of high-quality optical-grade materials such as PMMA (Polymethyl methacrylate) or PC (Polycarbonate) for plastic lenses, or specialized optical glass for more demanding applications. The material is then shaped into a flat or slightly curved substrate, depending on the design specifications.
The Fresnel zones are precisely molded or machined onto the substrate’s surface using advanced techniques such as injection molding for plastic lenses or precision diamond turning for glass lenses. This process ensures that each groove is accurately formed to achieve the desired optical performance. The grooves are then polished to ensure smooth transitions between the Fresnel zones, minimizing light scattering and maximizing optical clarity.
Quality control is a critical aspect of the Fresnel lens fabrication process. Each lens undergoes rigorous testing to verify its focal length, groove density, and overall optical performance. Surface quality is inspected using high-resolution interferometers to ensure that the lens meets the required surface accuracy and smoothness. Additionally, transmission efficiency is tested to confirm that the lens effectively directs light through its grooves without significant losses. Any lens that does not meet the strict quality standards is rejected to ensure that only the highest quality products reach the customer.
Application
Fresnel lenses are versatile components used in a wide range of optical applications due to their lightweight and compact design. In the field of projection, Fresnel lenses are commonly used in overhead projectors and modern digital projectors to focus and direct light onto the screen. In the automotive industry, they are employed in headlights and taillights to control the beam pattern and improve the efficiency of the lighting system.
In addition to these applications, Fresnel lenses are also used in solar concentrators, where their ability to focus sunlight onto a small area is harnessed for solar energy collection. They are used in various sensors, imaging systems, and even in virtual reality headsets, where their compact size and ability to provide wide field-of-view optics are crucial. The adaptability of Fresnel lenses to different wavelengths, including UV, visible, and near-infrared, further broadens their range of applications.
Why Choose Bote Optics
Bote Optics stands at the forefront of Fresnel lens manufacturing, offering a wide array of customizable solutions to meet the diverse needs of our clients. Our state-of-the-art production facilities and expert team of optical engineers ensure that every Fresnel lens we produce meets the highest standards of quality and performance. With a focus on innovation and precision, Bote Optics delivers Fresnel lenses that excel in clarity, efficiency, and durability, making them ideal for even the most demanding optical applications.
Choosing Bote Optics means choosing a partner committed to excellence in every aspect of optical manufacturing. Our extensive experience, advanced fabrication capabilities, and rigorous quality control processes make us the preferred choice for clients seeking reliable and high-performance Fresnel lenses. Whether you require standard designs or custom-engineered solutions, Bote Optics has the expertise and resources to deliver products that exceed your expectations.
