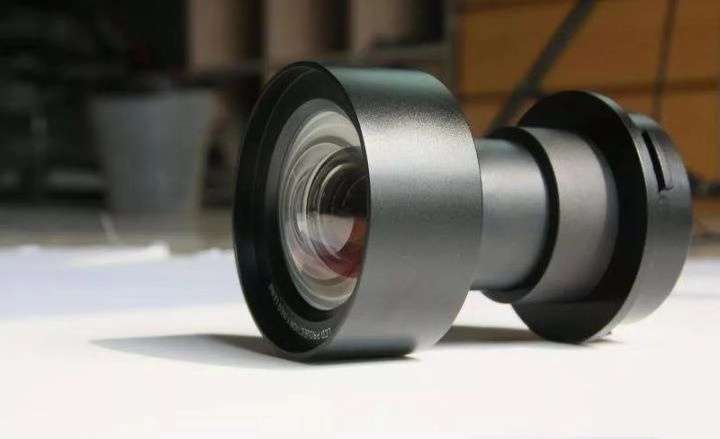

Projection Lens – High-Quality Optics for Clear Image Projection
What is a Projection Lens?
A projection lens is an optical component designed to focus and project images onto a screen. It is widely used in projectors, digital displays, and optical imaging systems to ensure sharp, bright, and distortion-free visuals.
Projector Lens: Concave or Convex?
Projection lenses typically use convex (converging) lenses to focus and enlarge images onto a surface. Some advanced designs may incorporate concave (diverging) elements to correct distortions and enhance image quality.
Projector Lenses Explained
A projection lens system consists of multiple optical elements that work together to:
- Magnify and project images from a light source.
- Maintain sharpness across different distances.
- Adjust focus to ensure clarity.
- Reduce optical aberrations for high-quality visuals.
Video Projector Lens – Key Features
Video projectors rely on high-precision lenses to deliver crisp, vibrant images. Features include:
- Zoom and Focus Adjustability for different screen sizes.
- Low Distortion Optics to maintain image integrity.
- Anti-Reflective Coatings for enhanced brightness and contrast.
Projection Lens Function
A projection lens works by collecting and directing light from an image source to a distant screen, ensuring:
- Even Light Distribution for uniform brightness.
- High Contrast to enhance visibility in various environments.
- Adjustable Throw Distance for flexible installation.
Projector Lens Focal Length Calculator
The focal length of a projection lens determines the throw distance and image size. It can be calculated using:
[ Focal\ Length = \frac{Throw\ Distance}{Image\ Width} ]
- Short-Throw Lenses: For close-range projections.
- Long-Throw Lenses: For large venue setups.
Projection TV Lens
Projection TVs use specialized lenses to magnify images onto a large screen. These lenses are designed for:
- Wide Viewing Angles to accommodate multiple viewers.
- Optimized Light Transmission for vivid colors.
- Compact Optical Systems to fit in home theater setups.
Projection Lens Design
The design of a projection lens involves:
- Multi-Element Configurations to control aberrations.
- Aspheric Elements for enhanced sharpness.
- Customizable Focal Lengths for different applications.
Digital Projection Lens
Digital projection lenses are engineered for high-definition displays, including:
- 4K & 8K Resolution Compatibility for ultra-clear images.
- Advanced Coatings to improve contrast and minimize glare.
- Interchangeable Lens Systems for professional setups.
Product Specifications
| Parameter | Specification |
|---|---|
| Lens Type | Convex (Primary), Concave (Corrective) |
| Focal Length | 10mm – 300mm (Customizable) |
| Coating Options | AR, BBAR, High Transmission |
| Throw Ratio | Short, Standard, Long |
| Material | Optical Glass, Acrylic |
| Resolution | Compatible with HD, 4K, 8K |
Applications
- Home Theater & Cinema Projectors
- Conference & Business Presentations
- Digital Signage & Advertising Displays
- Large Venue & Stage Projection
For custom solutions or inquiries, contact us today!
